Our plastic-bonded magnetic compounds are specially developed for injection molding and offer a variety of magnetic performance characteristics for diverse application areas.
As Europe's largest distributor for magnetic compounds, we guarantee you a secure and economical supply of raw materials with products from leading Japanese manufacturers.
Request ConsultationThe material is processed using modified injection molding systems fitted with special tools. If magnetic fields are applied directly in the tool, it is possible to magnetize the workpiece in a variety of different ways (axial, radial, multipole, etc.) during the production process itself. It is, of course, also possible to magnetize the workpiece after production.
We offer an extensive range of different grades with a variety of magnetic properties to suit your particular application. You are welcome to talk to us and we will be happy to help you choose the right material and advise you on using it.

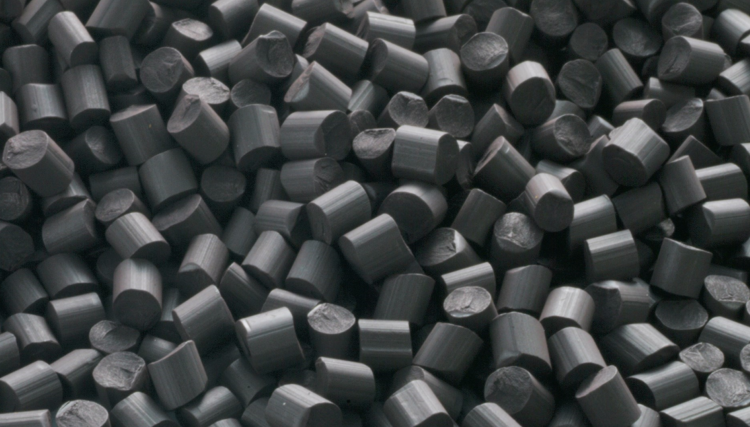

The ferrite bonded magnetic compound from Mate's HM Series is a magnetic material that can be shaped by injection molding in the same way as plastic. This material is a compound of isotropic or anisotropic magnetic materials and thermoplastics (PA12, PA6, PPS etc.) and can be injection molded to produce complex and delicate structures.
Magnets manufactured from the rare-earth material neodymium have a magnetic force several times that of ferrite bonded magnets. This makes it possible to manufacture smaller, lighter products with the same magnetic force.
Magnets manufactured from anisotropic neodymium bonded compound have a far greater magnetic force than conventional bonded magnets. They can achieve a BH (max) of up to 120 kJ/m³ and can be used to replace some sintered products.

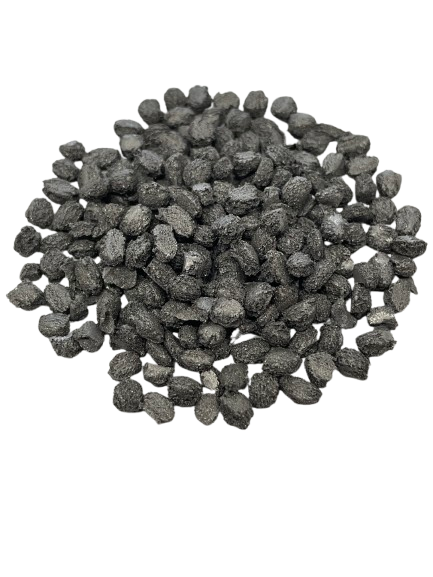

Suitable for applications in high-temperature environments or which have special requirements with respect to thermal stability, as it is resistant to thermal demagnetization and is less liable to fluctuations in the magnetic force with changing temperatures. Samarium-cobalt magnets are also a good choice for products that are intended to have a long service life.

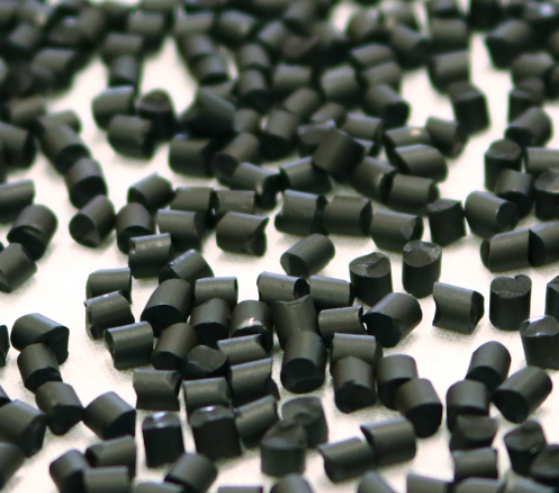

Magnets made from neodymium and ferrite compound achieve magnetic forces of the same magnitude as sintered ferrite magnets (10 – 30 kJ/m³) at acceptable costs.
For further details or to request these documents, please contact us.
You can also find more information on our partner's website:
For us, customer-focus means rapid, flexible, unbureaucratic procurement of raw materials to match your precise requirements.
